MoreS-IVB - Sunday, July 12, 2009 16:11

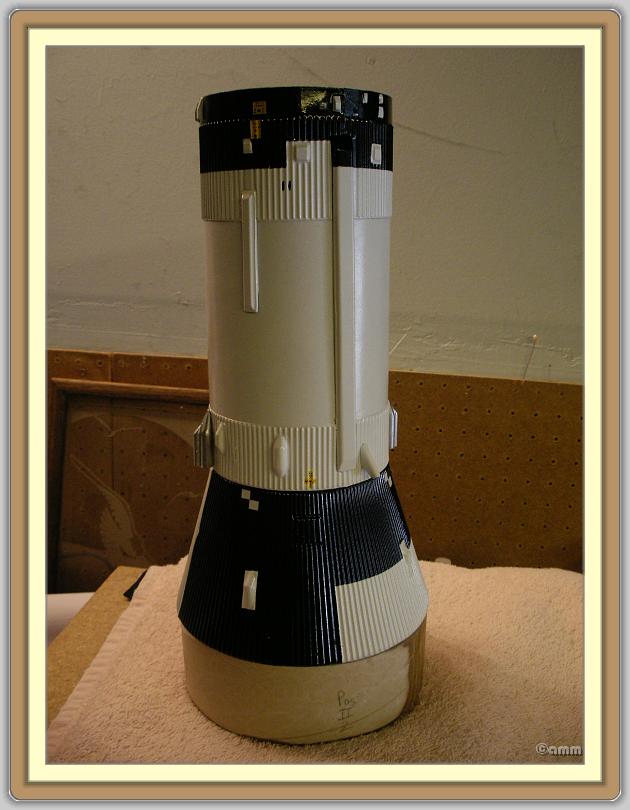

The aft fly-away umbillical connector is shown, along with the LH2 propulsive skirt vents at this position (the small pair of black elongated dots between the two tunnel covers).
