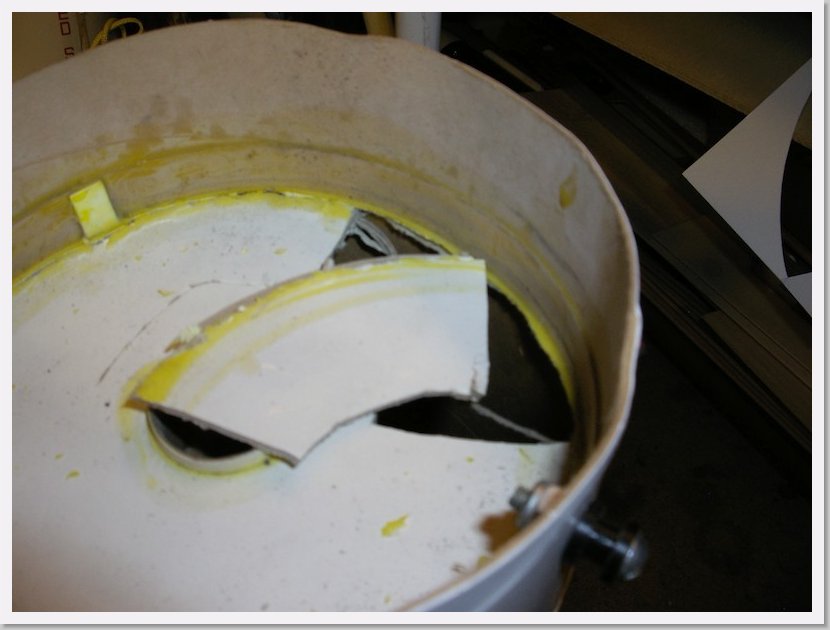

Comment: Segment of the forward MMT centering ring removed.
Fin A Root Minus Tab * The root of fin A. The whiteish part in the center of the fin root is what remains of the tabe that fit inside the shroud. * 800 x 600 * (67KB)

Fin A Overview * Overview of Fin A. The tab is missing from the root, on the right * 800 x 680 * (191KB)

Repair Work Begins * Beginning of repair work on damaged S-II. Note the cut just below the 'A' in STATES. The tunnel cover is still holding the pieces to gether. * 600 x 800 * (81KB)

Dangling S-II Tunnel Cover * Upper portion of the S-II removed, with the (damaged) tunnel cover still in place. * 600 x 800 * (72KB)

Forward MMT Centering Ring Damage * Closeup of damage to the forward motor mount centering ring. * 800 x 600 * (64KB)
Next slide

Forward MMT Centering Ring Removal 1.jpg - 800 x 600 - (69KB)
Download file (69KB)
5/23/10 5:36 PM
Forward MMT Centering Ring Removal 2 * Looking into the top of the S-II, after initial segment removal. The removed quadrant of the centering ring is visible; if you look carefully, you can see the cut lines around the circumference of the ring. Also easily visible is the damage to the motor mount tube. * 800 x 600 * (81KB)

Forward MMT Centering Ring Removal 3 * The forward centering ring is removed, with three of the four strengthening gussets still in place. You can see the remnants of the shock cord bridle (yellow Kevlar cord) beneath the gussets. * 800 x 600 * (96KB)

Forward MMT Centering Ring Removal 4 * Another view of the removed ring with remaining gussets. * 800 x 600 * (83KB)
