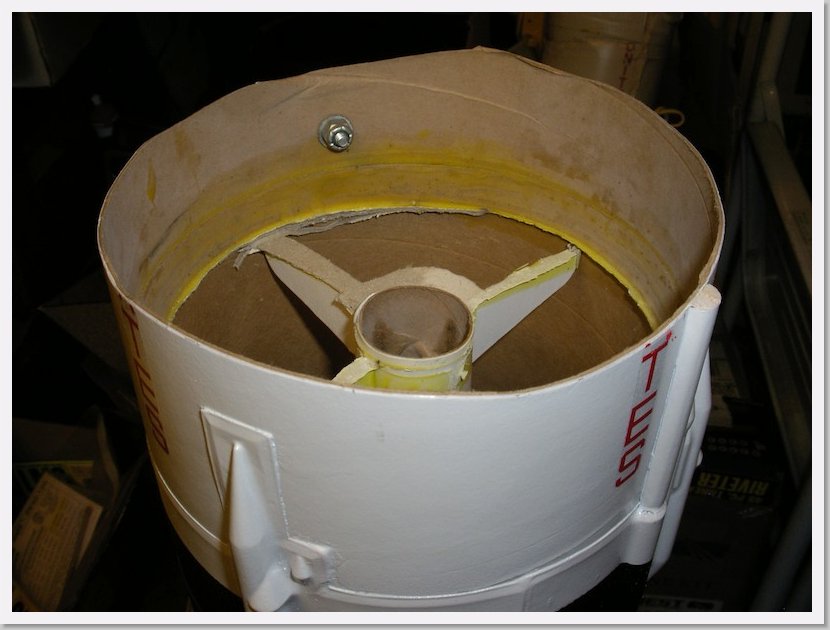

Comment: Another view of the removed ring with remaining gussets.
Dangling S-II Tunnel Cover * Upper portion of the S-II removed, with the (damaged) tunnel cover still in place. * 600 x 800 * (72KB)

Forward MMT Centering Ring Damage * Closeup of damage to the forward motor mount centering ring. * 800 x 600 * (64KB)

Forward MMT Centering Ring Removal 1 * Segment of the forward MMT centering ring removed. * 800 x 600 * (69KB)

Forward MMT Centering Ring Removal 2 * Looking into the top of the S-II, after initial segment removal. The removed quadrant of the centering ring is visible; if you look carefully, you can see the cut lines around the circumference of the ring. Also easily visible is the damage to the motor mount tube. * 800 x 600 * (81KB)

Forward MMT Centering Ring Removal 3 * The forward centering ring is removed, with three of the four strengthening gussets still in place. You can see the remnants of the shock cord bridle (yellow Kevlar cord) beneath the gussets. * 800 x 600 * (96KB)
